Vox model

A small vox model

Vox​

Voxes are small (32x32x32) .vox models, currently limited to 200 per parcel. These are usually made using Magicavoxel.

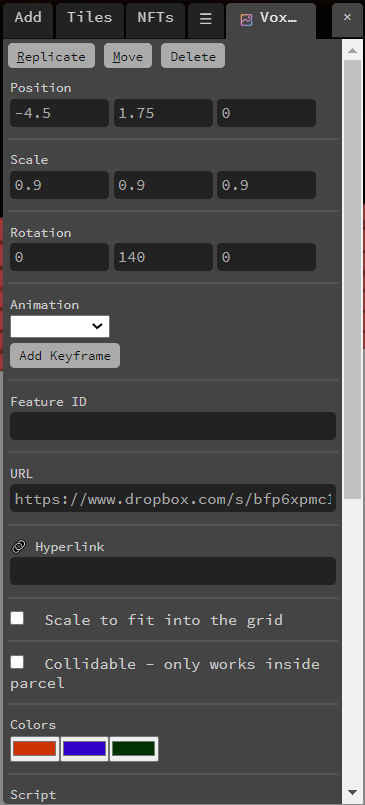

Editor​


URL​

The URL of the .vox file.

(Optional); makes the .vox a clickable link.

Scale to fit​

(Optional); fit the size of the vox to fit the grid.

Collidable​

(Optional); Make the vox model a collidable object.

Colors​

(Optional); Allows you to change the color of your vox model. This option will not appear if your vox has more than 5 colors.

Scripting Properties​

Scripting Properties {.tabset}​

url​

String; Links must be https:// and must finish with a vox extension .vox Has to link to a 32x32x32 vox model or smaller.

get()​

feature.get('url')
// returns: "https://..."

set()​

feature.set({'url':"https://www.myurl.com/file.vox"})

default​

""

String; Links must be https://.

get()​

feature.get('link')
// returns: "https://..."

set()​

feature.set({'link':"https://www.myurl.com/"})

default​

""

collidable​

Boolean

get()​

feature.get('collidable')
// returns: false

set()​

feature.set({'collidable': true})

default​

false

type​

String;

get()​

feature.get('type')
/* or */
feature.type

// returns: 'vox-model'
