Cube

Cube​

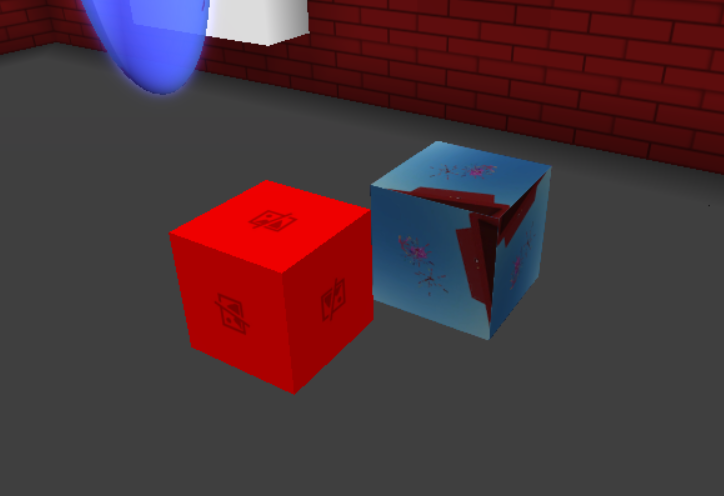

The cube feature is a simple cube mesh that you can texture or color.

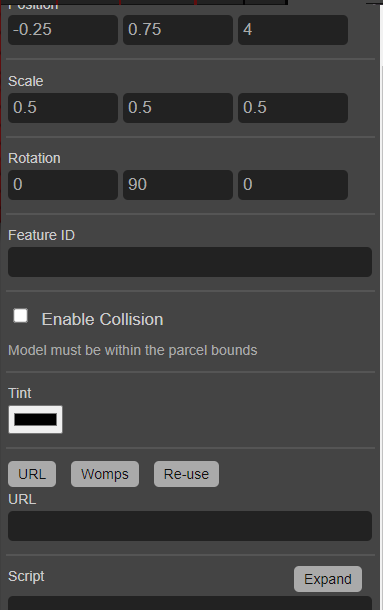

Editor​

[cube-feature]editor_5.57.png{.align-center}

URL​

The URL of the image that will be used as texture.

Collidable​

(Optional); Make the cube a collidable object.

Colors​

(Optional); Allows you to change the color of your cube.

Scripting Properties​

Scripting Properties {.tabset}​

url​

String; Links must be https:// and must finish with an image extension.

get()​

feature.get('url')
// returns: "https://..."

set()​

feature.set({'url':"https://www.myurl.com/file.png"})

default​

""

Color​

String; An Hex color string such as #000.

get()​

feature.get('color')
// returns: "#ffffff"...

set()​

feature.set({'color':"#4287f5"})

default​

"#000000"

collidable​

Boolean

get()​

feature.get('collidable')
// returns: false

set()​

feature.set({'collidable': true})

default​

false

type​

String;

get()​

feature.get('type')
/* or */
feature.type

// returns: 'cube'
